Profiling AI provider calls in Drupal

Add a chatbot to a Drupal site and something uncomfortable happens: the slowest, most expensive part of the request becomes the part you know the least about. The page took six seconds. Which of those seconds belonged to a provider? How many calls were there, really? Which model answered? How many tokens did you pay for, and how many of them were a guardrail checking the question before anyone answered it?

Until now the honest answer in Drupal was to add logging and guess. WebProfiler has had a panel per subsystem for years (database, cache, events, Views) and AI was the obvious hole. Merge request !45 closed it with a new AiDataCollector and an AI panel, released in WebProfiler 11.2.2.

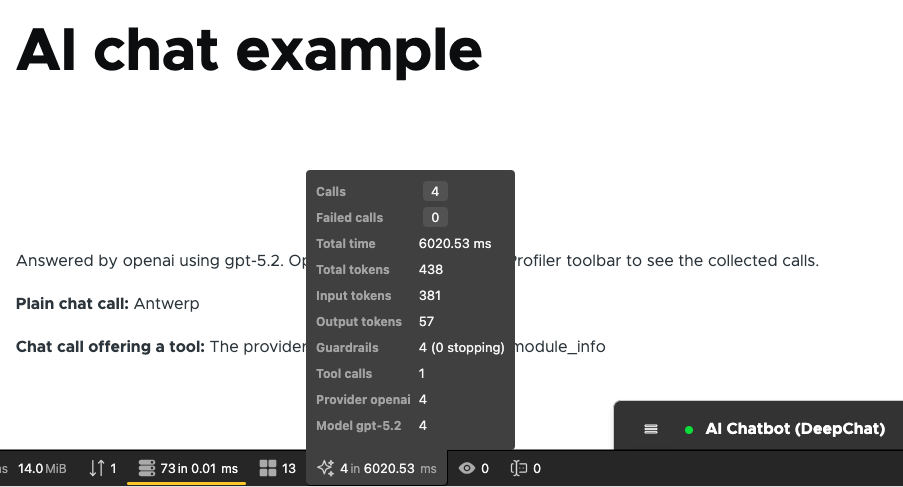

That summary is the whole point. The page asked one question. Behind it there were four calls to openai and gpt-5.2, four guardrail evaluations, and a tool the provider decided to invoke. Three quarters of the latency was work nobody wrote in a controller.

Collecting without depending

The AI module is an optional dependency of WebProfiler, which shapes almost every decision in the implementation. The collector is registered only when the module is there:

// src/WebprofilerServiceProvider.php
if (isset($modules['ai'])) {
  $container->register('webprofiler.ai',
    'DrupalwebprofilerDataCollectorAiDataCollector')
    ->addTag('event_subscriber')
    ->addTag('data_collector', [
      'template' => '@webprofiler/Collector/ai.html.twig',
      'id' => 'ai',
      'label' => 'AI',
      'priority' => 475,
    ]);
}

Registration is guarded, but the class itself has to be loadable and compilable whether or not the AI module exists, so AiDataCollector never references an AI module class. Events are subscribed by name as plain strings, and their payloads are inspected by duck typing:

private const EVENT_PRE_GENERATE = 'ai.pre_generate_response';
private const EVENT_POST_GENERATE = 'ai.post_generate_response';
private const EVENT_POST_STREAMING = 'ai.post_streaming_response';
private const EVENT_EXCEPTION = 'Drupal\ai\Event\AiExceptionEvent';

Those four events are dispatched by Drupal\ai\Plugin\ProviderProxy, which every provider call passes through. That is the seam that makes the panel possible: one interception point, regardless of which provider plugin ends up doing the work.

Subscribing last, on purpose

Every subscriber is registered at priority -1000:

public static function getSubscribedEvents(): array {
  return [
    self::EVENT_PRE_GENERATE => ['onPreGenerate', -1000],
    self::EVENT_POST_GENERATE => ['onPostGenerate', -1000],
    self::EVENT_POST_STREAMING => ['onPostStreaming', -1000],
    self::EVENT_EXCEPTION => ['onException', -1000],
  ];
}

Running last is what makes the data trustworthy. Guardrails rewrite input. Failover swaps the provider and the model. Any contrib module can alter the configuration on its way to the API. A collector that listened first would faithfully record a request that was never sent. Listening last records what actually went out and what actually came back.

A call is a span with an ending

Each pre_generate opens a call; post_generate closes it, post_streaming closes a streamed one, and the exception event closes a failed one. Requests that never reach an ending are the interesting part, so collect() resolves them at the end of the request instead of dropping them:

foreach ($this->data['calls'] as $id => $call) {
  if ($call['status'] === 'pending') {
    $this->data['calls'][$id]['status'] = $call['streamed'] ? 'unconsumed' : 'short_circuited';
  }
}

Two real failure modes get names here. short_circuited means something, usually a guardrail, produced an output during the pre-generate phase, so the provider was never asked. unconsumed means a streamed response was created and nobody ever read the iterator. Both look like success in a log file and like a mystery in a latency graph.

Calls also carry a parent_id taken from the event’s request parent id, so nested calls (a chatbot pipeline calling a sub-agent, a tool call triggering another generation) form a tree. Walking that tree stops on unknown parents and on cycles, which a buggy provider is entirely capable of producing.

One more detail that only shows up in production: the collected values are snapshotted into VarDumper Data objects while the request is running, rather than kept as live references or cloned with the usual trait. Configuration and metadata coming out of an AI provider routinely contain closures, and a closure reaching kernel.terminate is a serialization exception in the profiler storage rather than a bug you can see.

Four tabs

The panel splits into Metrics, Calls, Guardrails and Tools.

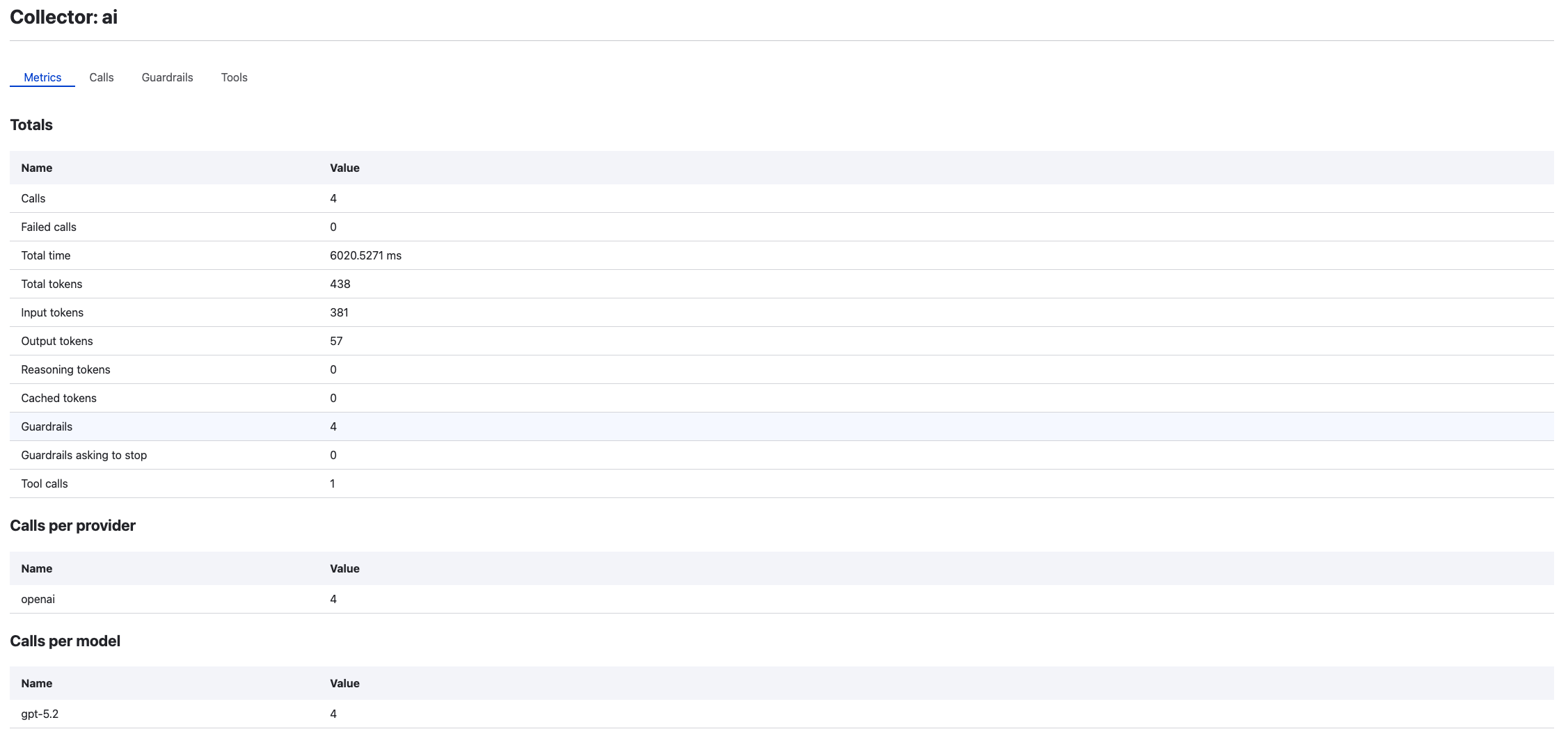

Metrics is the budget view: how many calls, how many failed, total time, and tokens broken down into input, output, reasoning and cached, plus a breakdown per provider and per model, which is how you find out that failover quietly moved you to a different model.

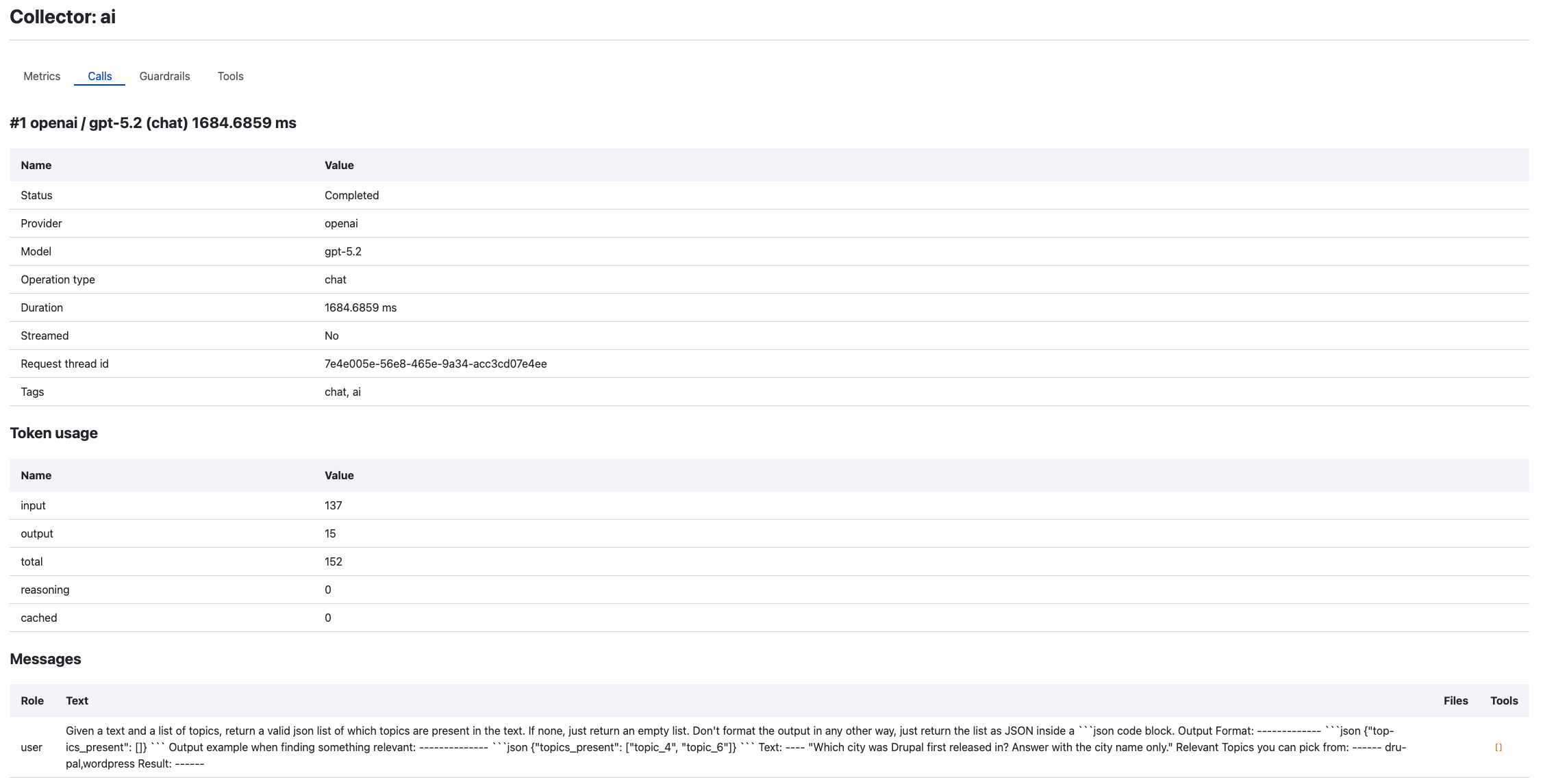

Calls is one block per call, in order, with status, provider, model, operation type, duration, whether it was streamed, the request thread id, tags, token usage, the messages exchanged and the raw payload.

The messages table is where the surprises live. In the request above, call #1 spends 152 tokens asking the model to return a JSON list of topics present in the text. The user’s actual question is a passenger inside a guardrail prompt.

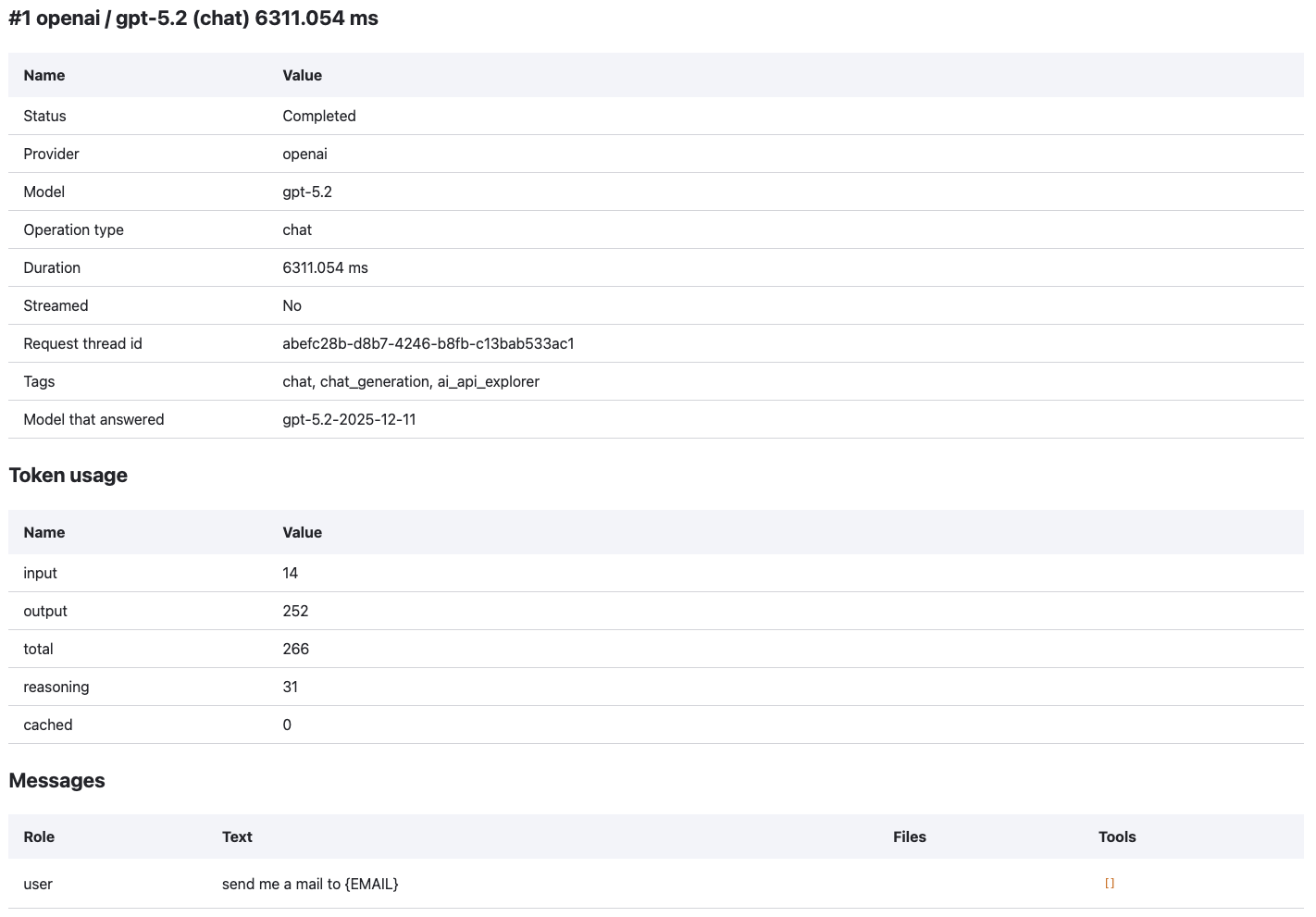

Tags are worth reading too. They record where the call came from, so a call tagged chat, chat_generation, ai_api_explorer is somebody poking the API explorer, not your chatbot, and Model that answered is reported separately from the requested model.

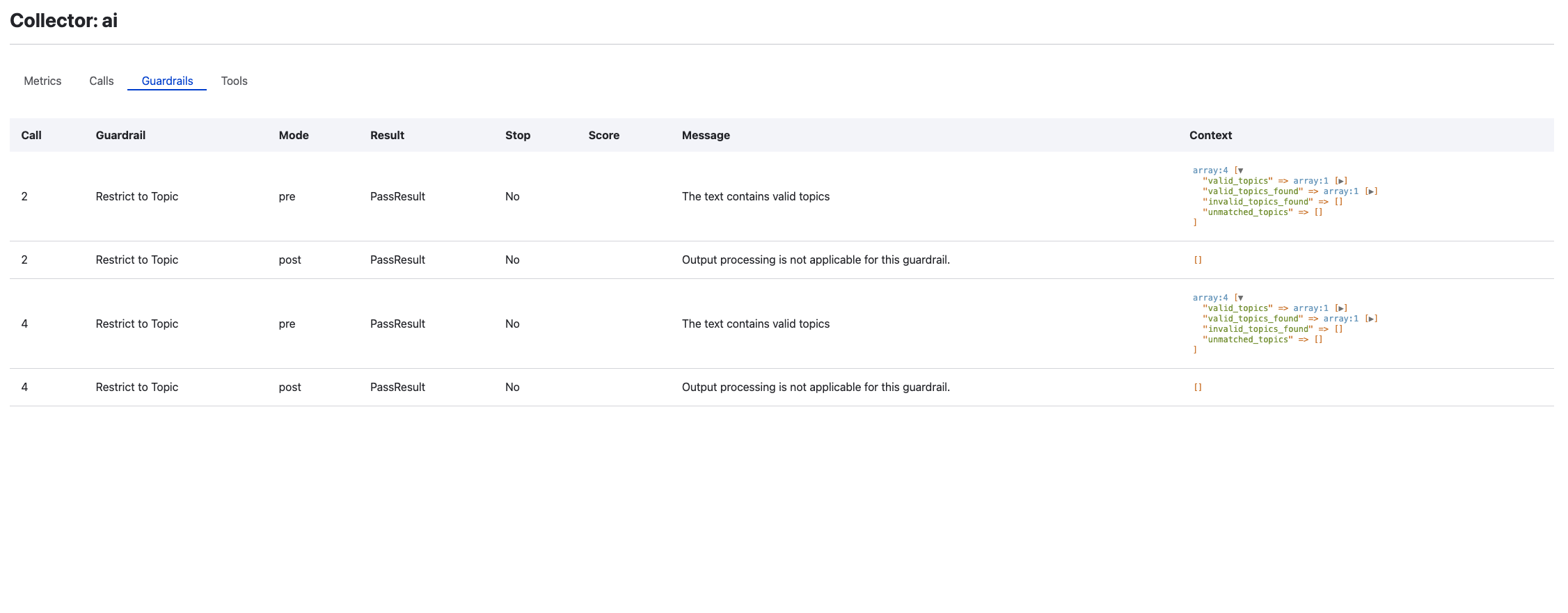

Guardrails lists every evaluation with its mode (pre or post), result, whether it asked to stop, its score, its message and its context. The count of guardrails that asked to stop sits in Metrics as its own number, because a blocked request and a slow request need very different fixes.

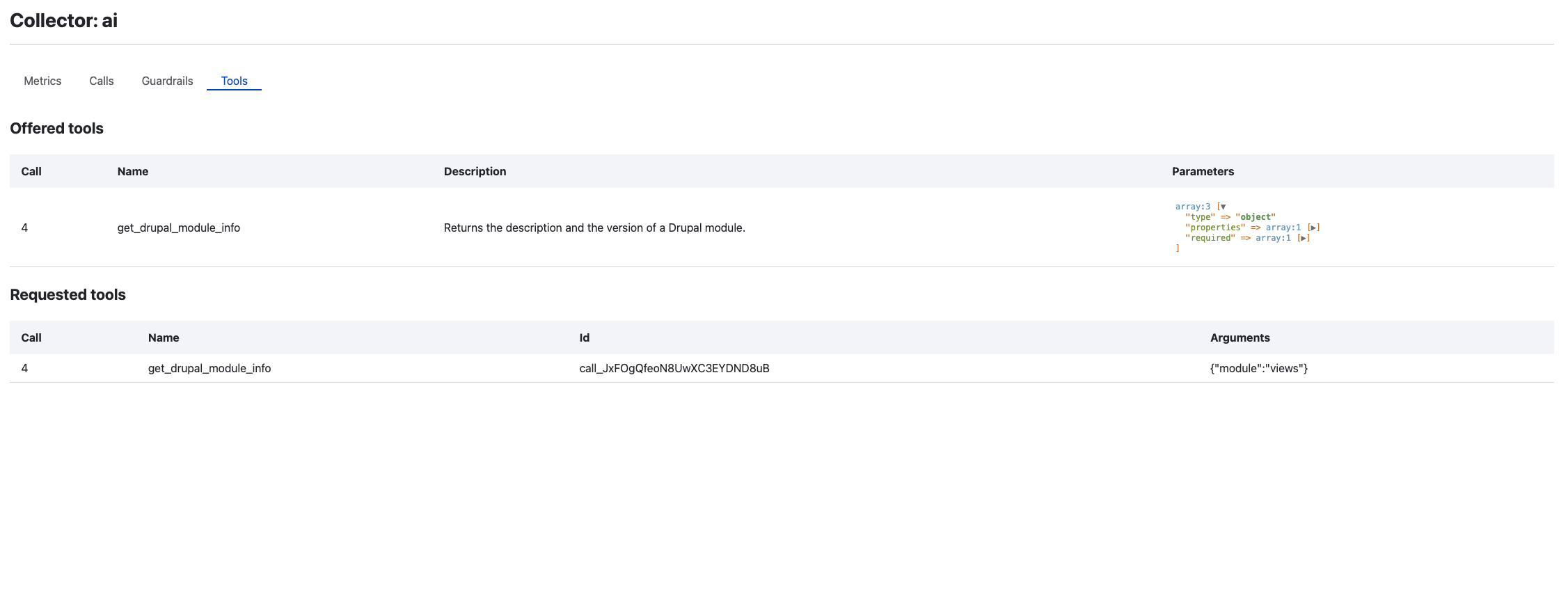

Tools separates what you offered from what the provider asked for. The offered list shows each tool definition and its JSON schema; the requested list shows the call id, the tool name and the arguments the model chose.

Reading the request again

With the panel open, the six-second page from the first screenshot decomposes without guesswork: four calls, one of them the answer, two of them a topic guardrail running before and after, one of them a tool round trip. 381 input tokens against 57 output tokens. No failures, no guardrail stops, one tool invocation.

None of that is a performance fix on its own. It is the thing you need before a performance fix stops being a guess, and the reason WebProfiler exists in the first place.

Trying it

The collector shipped in WebProfiler 11.2.2:

composer require 'drupal/webprofiler:^11.2'

Enable the module, make sure the AI panel is active in the toolbar (it is on by default in webprofiler.settings), and load a page that talks to a provider. Then read the toolbar. If the number of calls surprises you, that is the panel doing its job.

Ajax requests

The collector works in Ajax requests too. The toolbar AJAX collector is updated every time a request starts, so you can use it to monitor an AI call. A click on the collected profile opens the panel for that request, and the Metrics tab shows the total time and tokens for all calls in that request. The Calls tab shows each call, and the Guardrails and Tools tabs show their respective evaluations and invocations.
